Down The Hole (DTH) Drilling

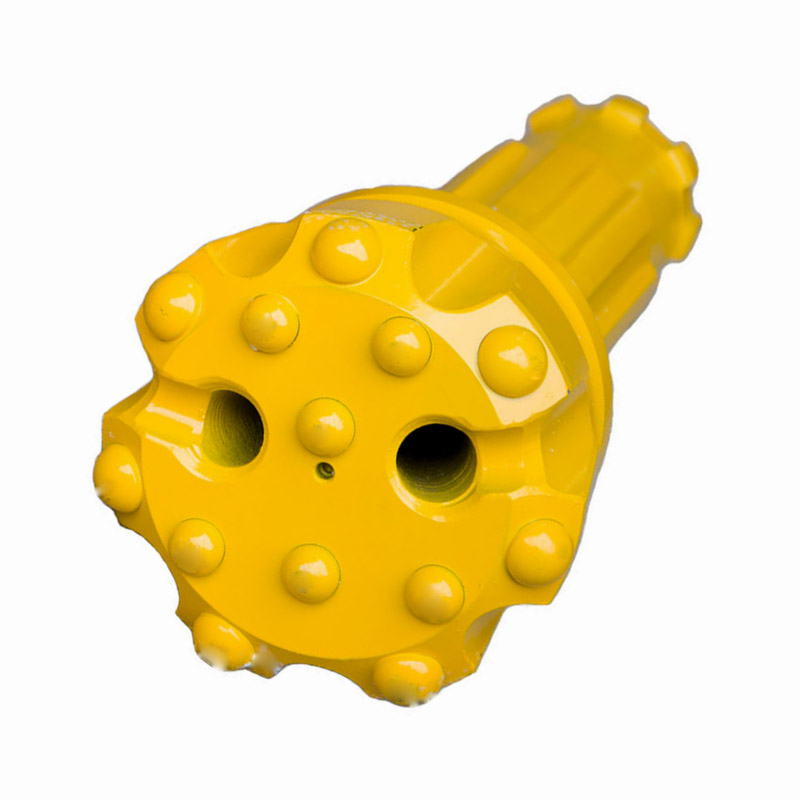

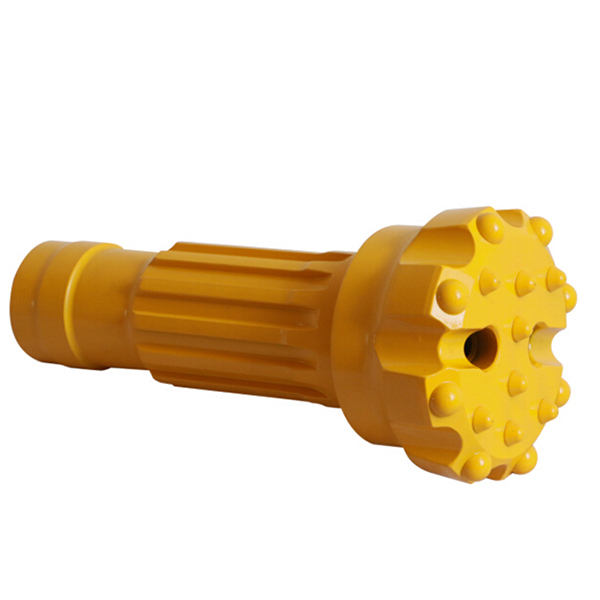

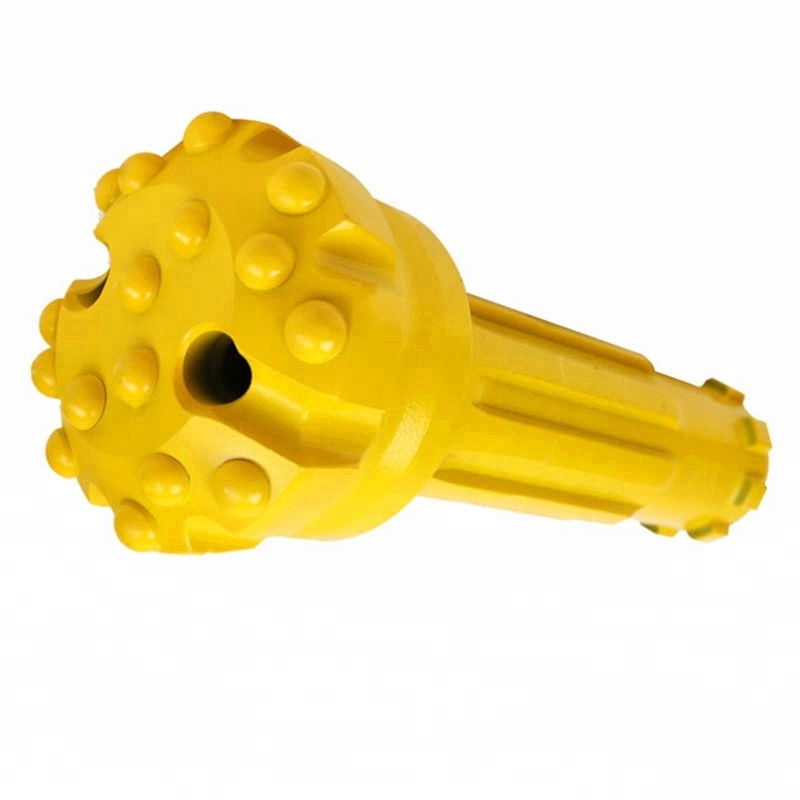

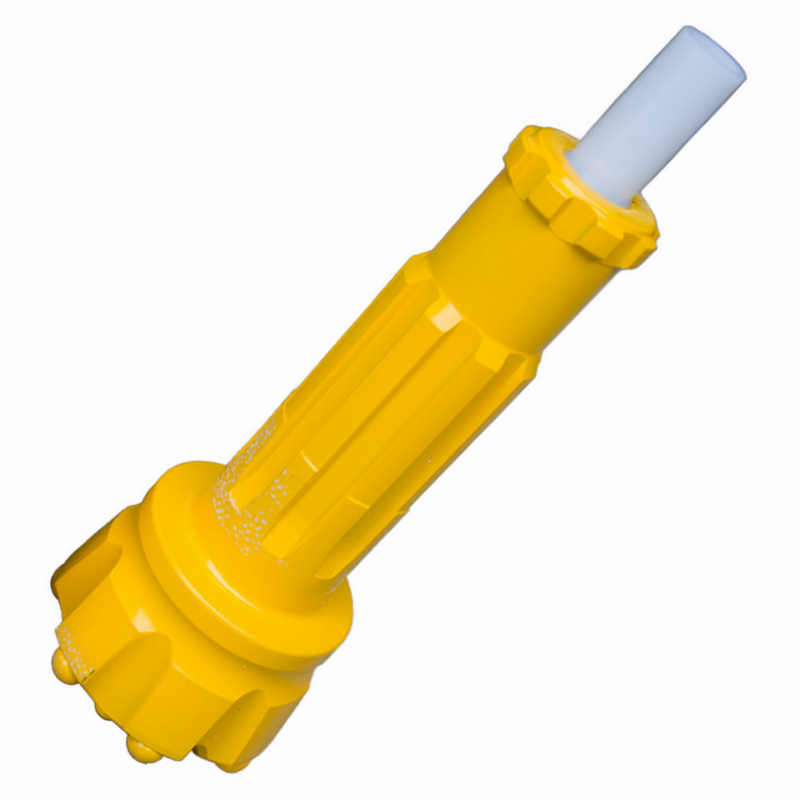

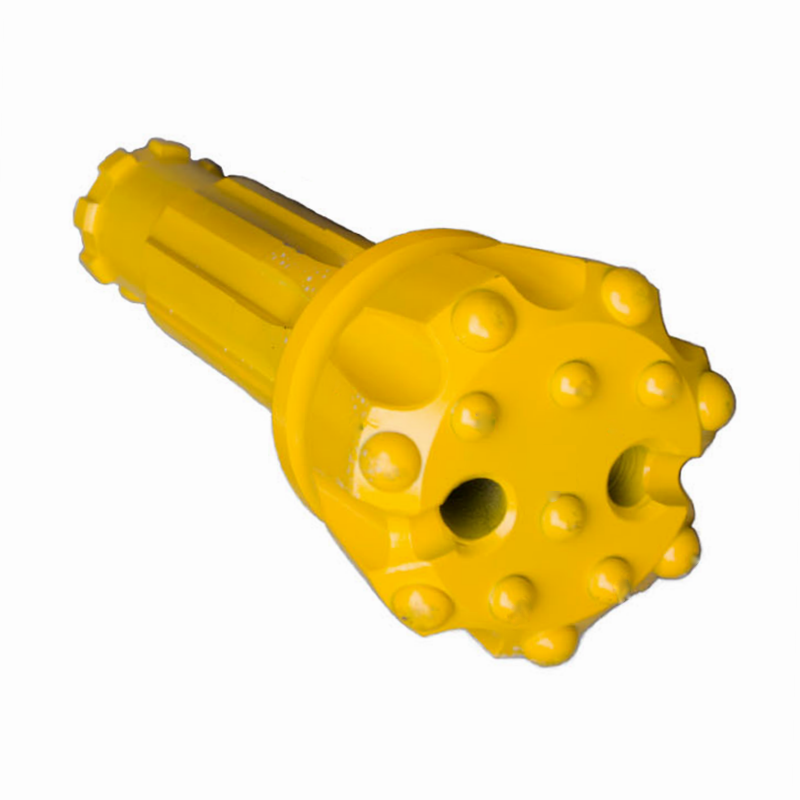

DTH Button Drill Bit

Product description: We produce different DTH drill bits to match the DTH hammer with different model
INQUIRY

The DTH bit is mainly used for cutting rocks. we adopt international production technology to ensure the bit with better quality assurance. The DTH bit face design mainly has flat, convex and concave. Different face can be used in different rocks.

Flat face: this is a universal design and can be used in hard rock and grindstone strong rock structure, so the DTH bit with flat face and spherical buttons is a more widely choice.

Convex face: this is a classic design for soft rock or medium hard rock with weak grind ability. This design has high driving efficiency when drilling soft rock or medium hard rock.

Concave face: this design is often used in hard and medium hard rocks with weak grind ability and fractured rock. Especially in deep hole drilling, this design can ensure the borehole straightness.

We produce different DTH drill bits to match the DTH hammer with different model as follows:

DTH Bit Size	Shank Model	Diameter Range
3.5inch/3inch	COP34, DHD3.5, MISSION30, BR3	90mm~105mm
4inch	DHD340, QL40, MISSION40, SD4	110mm~130mm
5inch	DHD350, QL50, MISSION50, SD5	134mm~152mm
6inch	DHD360, QL60, MISSION60, SD6	152mm~203mm
8inch	DHD380, QL80, MISSION80, SD8	203mm~305mm
12inch	DHD112, SD12 and QL120	customized
